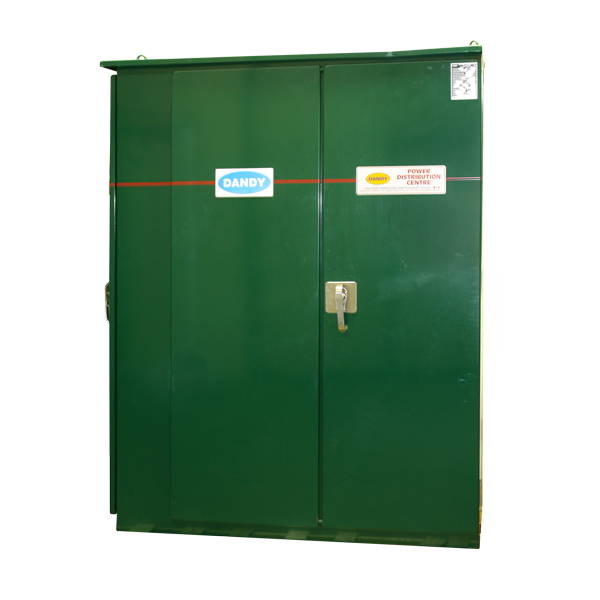

MHP-B
MHP-B
MOBILE HOME PARK DISTRIBUTION CENTER
EEMAC 3R enclosure
Specifically designed as a heavy duty, stand alone, pad mount, package meter distribution center fully prewired complete with separate individual TV and TEL compartments on rear
80"H x 47"W x 30"D
Parks Green powder coat finish
Service entrance rated, fused main type 'J'
120/240V single phase
4 Jaw meter sockets 125A cold style (optional to 200A)
100A 10kAIC Rated load breaker (optional sizes)
Separate sections for TV, TEL and power
Power section complete with 3 point padlockable hinged door
7" TV and TEL sections complete with plywood backpan, ground lugs and three clasps, one is padlockable type (or 3 point handle when hydro pull section is selected)
Open bottom for cable entry - easy access style
Flange on bottom turned in 3" all around complete with 4" snow kick
Safety soft, machine formed corners on doors and overhanging driphood complete with cross-brake style roof and lifting hooks on top
NOTE
Available in compact, low profile D-EGMS Series
