DHV-FT1-UG
DHV-FT1-UG

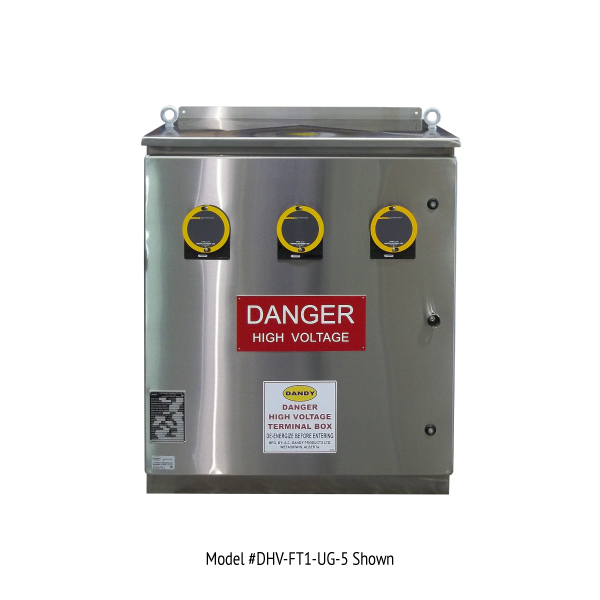

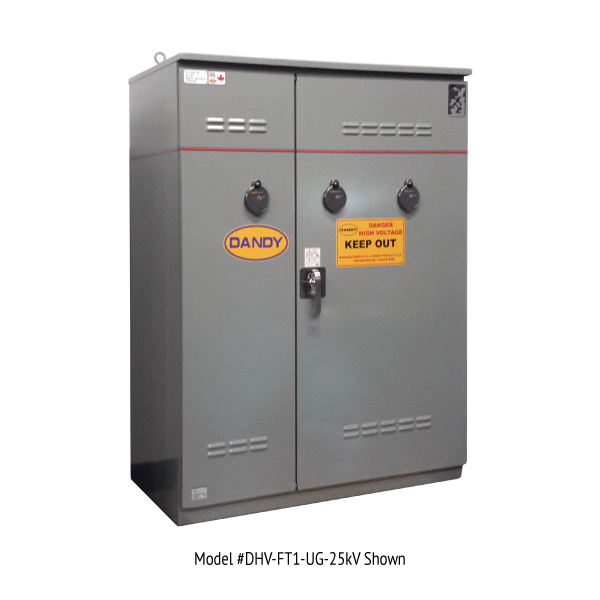

HIGH VOLTAGE UNDERGROUND MOUNT FEEDTHROUGH TERMINAL BOX
EEMAC 3R enclosure for indoor and outdoor use
Specifically designed high voltage cable terminal box designed for sigle or multiple (2) line and (2) load cables where bottom line and load entry is required
Compact design assembly with staggered line and load terminator pad makes for easy termination of cable fitted with terminators. Top mount insulators allow for additional terminator spacing with reduced cable bending
Top mounted copper 800A terminal pads
Cabinet is 12 gauge heavy duty welded construction complete with hidden hinge (left), gasketed bolt closed door, and (3) padlockable compression style Model #DPLBC-1 closers
Roof has 2" driphood and is cross brake
Full 1½" ears on top and bottom are removable
ASA 61 grey powder coat finish complete with high voltage caution and arc flash labels
Options
Anti-condensation louvers and inner plates
Glastic separation barriers (4) enhance safety and assure proper terminator spacing
Non-ferris - aluminum or fiberglass gland plates
Shield ground bar (suggested over 5kV)
400A and 600A - 1200A and 2500A busing
EEMAC 4 or 4Xenclosure
