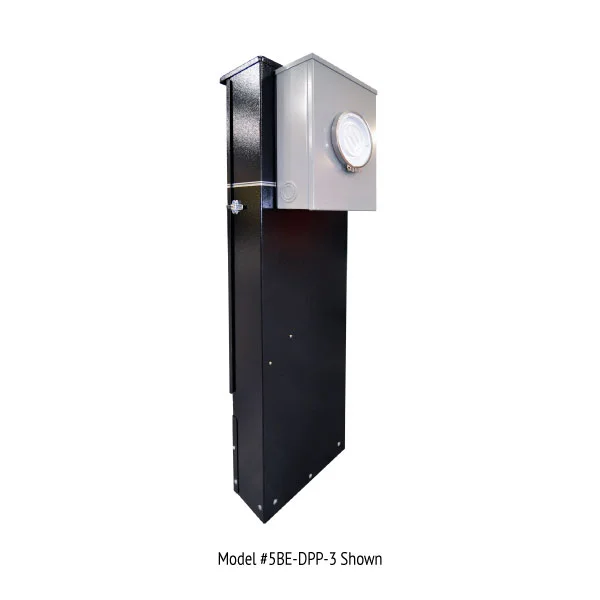

METERED TYPE POWER PEDESTAL - SPOONER SERIES

• EEMAC 3R enclosure

• Specifically designed as a pad mount style, service entrance rated power pedestal for standalone exterior services as in RV's, mobile homes, park models, or park event power that require a utility metered connection point, meter socket, service entrance rated panel, and various outlets for cord connection, etc. with provision for various auxiliary loads such as outbuildings, hot tubs etc.

• Concrete base style complete with internal mounting bolts self venting design assembly

• Fitted with rear surface mounted 100A 120/240V kilowatt hour meter socket prewired to service entrance rated MCB

• Internal outlet box is mounted so cords are plugged in from side to allow safe and secure cable bend and either use of angle or direct end plugs

• Parks Green powder coat finish

Options

• Assembly without rear meter socket

• Meter socket complete with oversized #6-250MCM line lugs

• Internal water faucet

• Water faucet heater

Notes

• Meter socket line lug is 6 - 250MCM Cu/Al

• Available in direct burial style (5B-D Series)

Read more in the Product PDF
