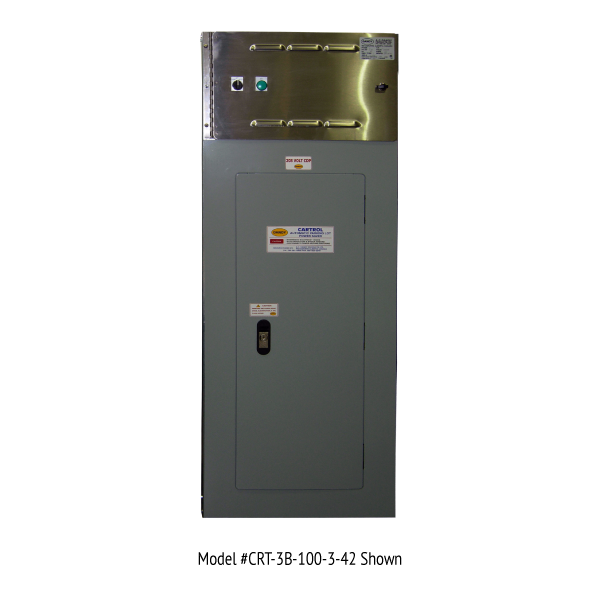

CARTROL PARKING LOT CONTROLLER

• EEMAC 3R enclosure

• Rainproof & sleet resistant for outdoor use

• Specifically designed for hard starting diesel or large truck parking lots using a two thermostat method of control

• As temperature falls to first set point (suggested -10°C/14°F) controller operates on 15 minute cycles (suggested 30 minute on, 30 minute off)

• As temperature falls to second set point (suggested -25°C/-13°F) controller operates on 100% on cycle

• HOA selector for 100% on

• Galvanized body - grey hinged door

• Siemens 'P1' bolt in circuit breaker panel when used

• Fully factory programmed and prewired

Options

• Loose field locatable thermostat

• Pad mounted open bottom enclosure

• Time of day clock

• Flip flop 50% load share on first cycle

• 100% load shed terminals

• 1 phase models 120/240V

Note

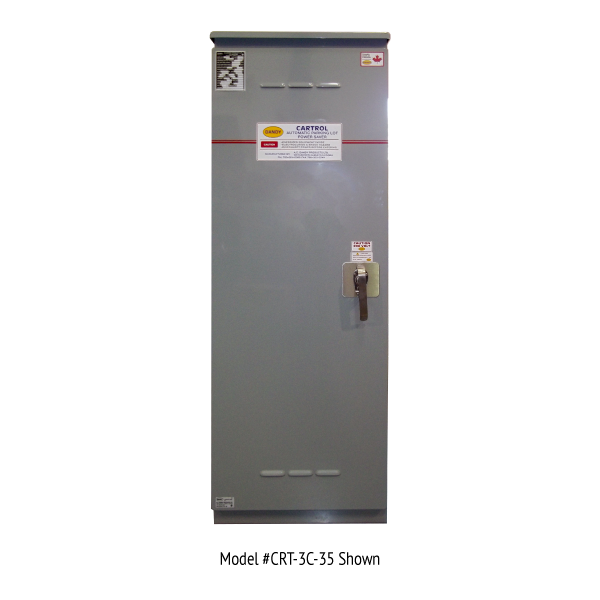

• Assembly model #CRT-3C complete with multiple load contactors allows for branch circuit control of multiple circuits for different sources ex. some circuits controlled and some not controlled

Read more in the New Product Bulletin and Product PDF
