MINI UNIT SUBSTATION STYLE

• EEMAC 3R enclosure

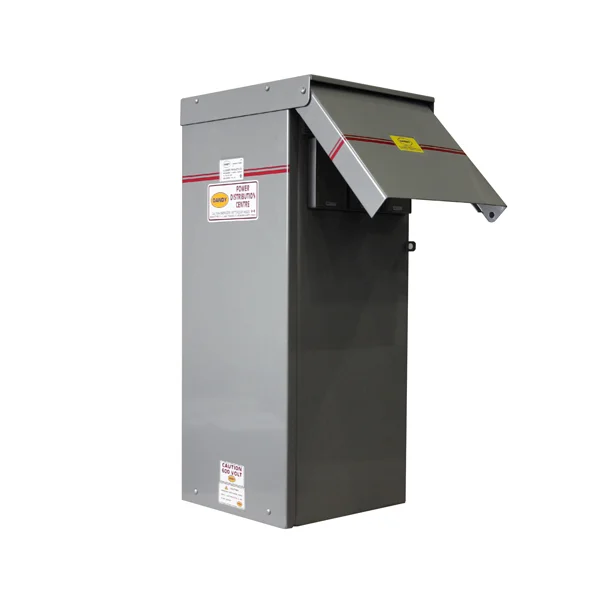

• Designed as a weatherproof mini step down transformer type pedestal assembly where long distances require a higher voltage source and 120V site power is required

• Transformer is in lower section

• Circuit breakers are moulded case type mounted under hood for easy operation - 10kAIC

• Overhanging driphood on top of enclosure complete with safety soft, machine formed corners on cross-brake roof

• Front access cover, 30" x 12", is screw fastened

• Open bottom with turned in 1 3/8" flange complete with 3/4" mounting holes

• Bond and ground lugs are factory installed

• Galvanized, heavy duty metal construction complete with ASA 61 grey

Options

• Side padlockable hood over circuit breakers

• Line side high voltage primary circuit breaker (see note)

• 120/240V Secondary

• Dual voltage 460/600V primary

• Feedthrough terminals see model #DPP-TER

• Reverse connection for step up

• 5" Open bottom for 7 3/4" bolt square precast light base Con-Force #8-0083-6 or #8-0082

Note

• When secondary circuit breaker is used it must not exceed 125% for transformer secondary current
