Dandy Farm / Power Service - Saskatchewan Specific

Model #PDC-FF-SK

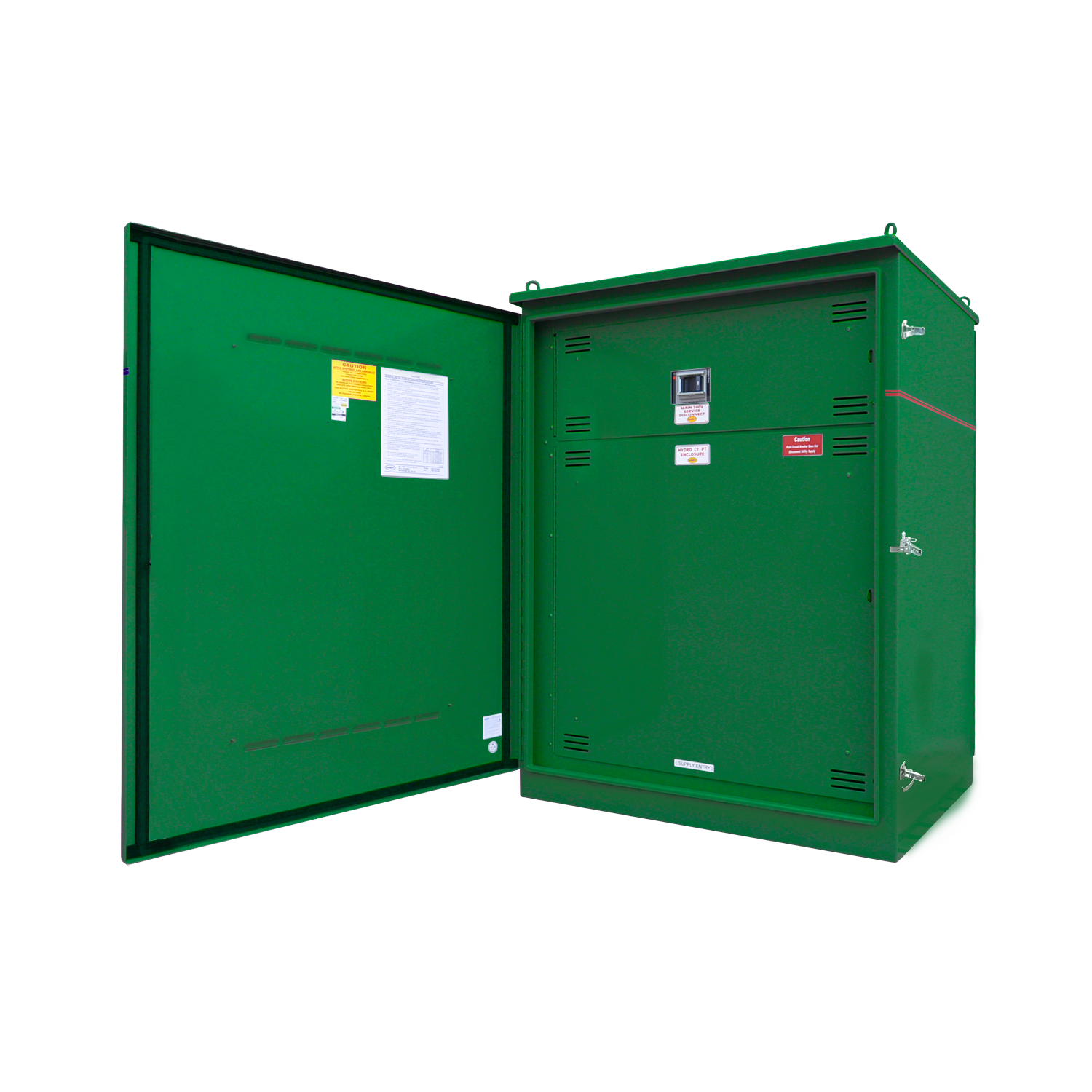

A.C. DANDY FARM/POWER SERVICE (Saskatchewan Specific)

  • EEMAC 3R enclosure

  • Specifically designed for Saskatchewan as a large capacity, single phase, service entrance rated, heavy duty power centre complete with combination utility termination/CT main entry cell, service entrance rated main breaker, and rear load side termination cell (to meet CEC rule #14-100 (g) and the 24th edition)

  • Unit can be fitted onto Armtec #6-0092-1 precast concrete base for easy, economical installation with easy expansion provision

  • Deluxe Parks Green powder paint finish

  • CSA certified assembly

Options*

  • Load side CDP

  • Fitted with load side CDP terminals

  • Manual transfer switch

  • MCB ahead of CT - see model #PDC-FF-SK-4

  • 100% Rated main circuit breaker (increases capacity by 20% - consult factory)

  • 3 Phase 208V style (consult factory)

** Consult factory for a full list of options

Notes

  • Standard load terminals are (8) #6-250 Cu/Al mechanical mugs, (8) #6-250 provisions,

    & (2) #2-600 provisions per phase + neutral & (8) #10-2/0 & (4) #6-250 ground lugs

  • When optional Siemens CDP is selected consult factory for size and type of circuit breakers

  • Adaptor lugs on CDP load breakers are available

  • Utility meter socket is field supplied & installed

  • Line & load lugs are 90°C rated

  • Circuit breaker lugs are 75°C rated
